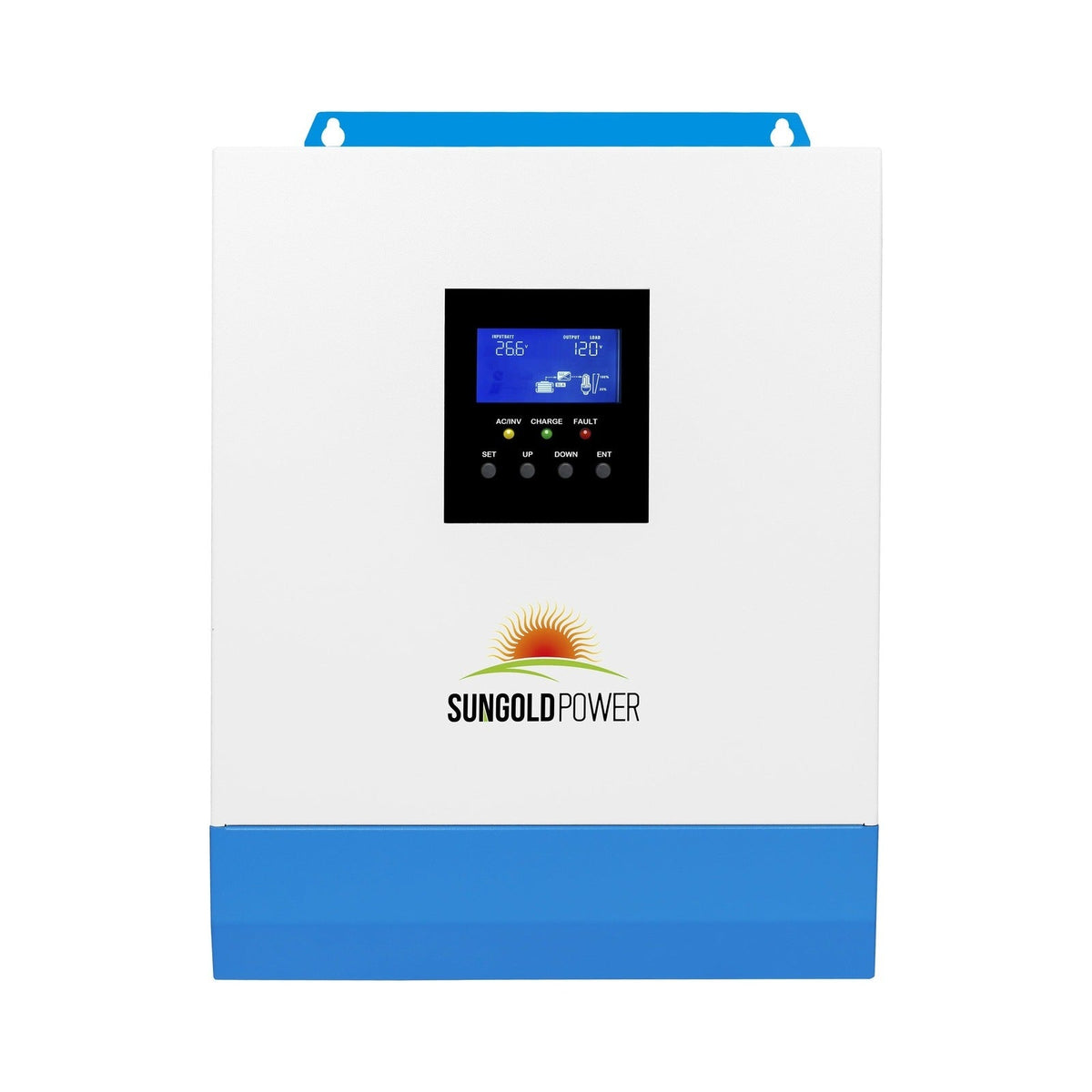

3000W 24V Solar Inverter Charger - SPH302460A

Integrity Is Long-lasting, Mutual Benefit And Win-win Cooperation" Is The Sungoldpower Business Philosophy And Long-term Development Goals.

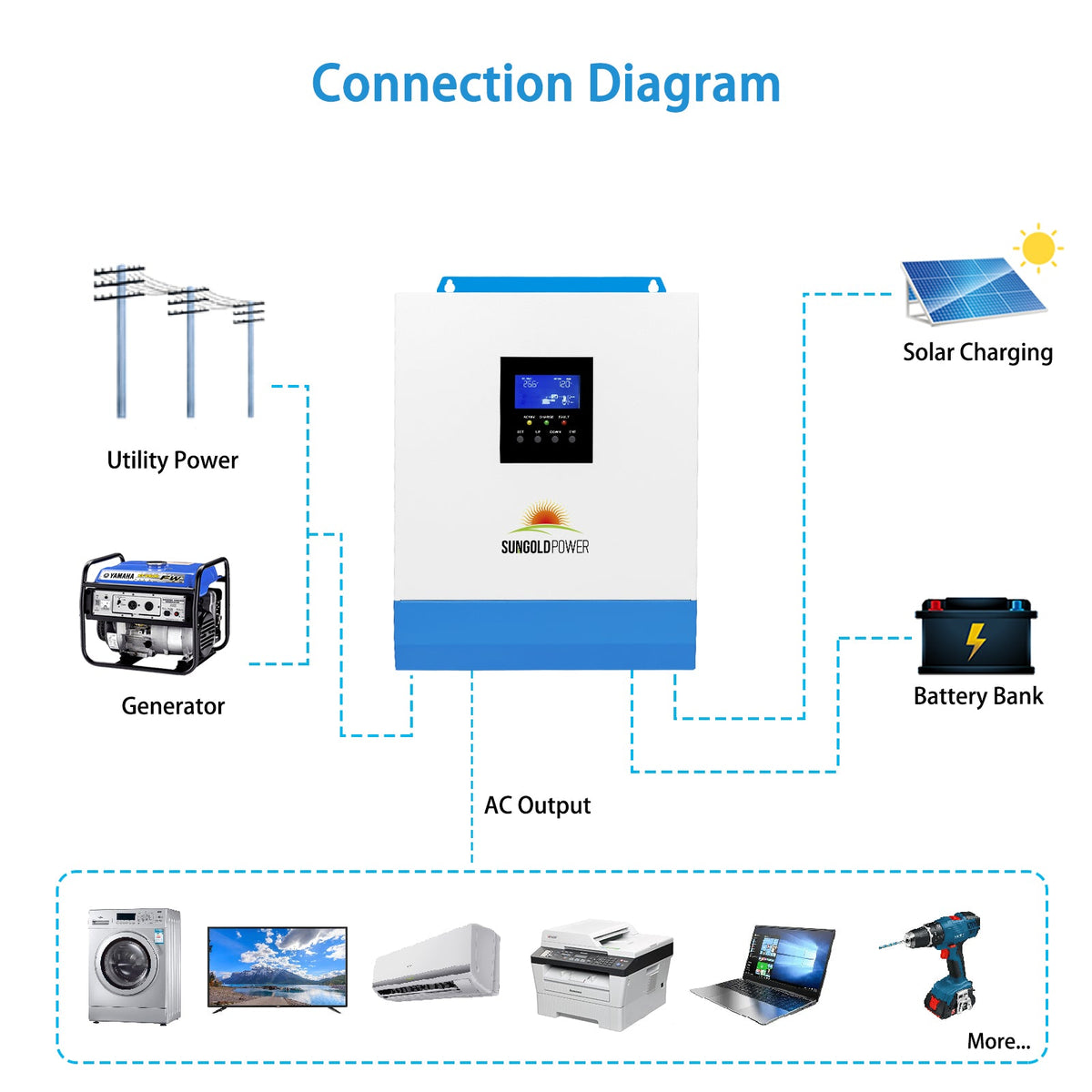

SUNGOLDPOWER 3000W 24V solar inverter combines solar charging, AC/generator battery charging, and battery inverter into one complete unit to make your off-grid system work. This solar inverter charger is compatible with 24V battery packs. It provides four user-configurable AC/solar charging modes and three load output modes. It can turn your system into an uninterruptible power supply (UPS)with only 10 milliseconds automatically switching to off-grid to ensure the load is powered.

Product Highlight

• ★ All-in-one solar charge inverter: 3000 Watts Pure Sine Wave Inverter Combined with 80A MPPT solar charging and 40A AC battery charging, you can enjoy stable power from the sun and the utility grid to keep you powered under any circumstances.

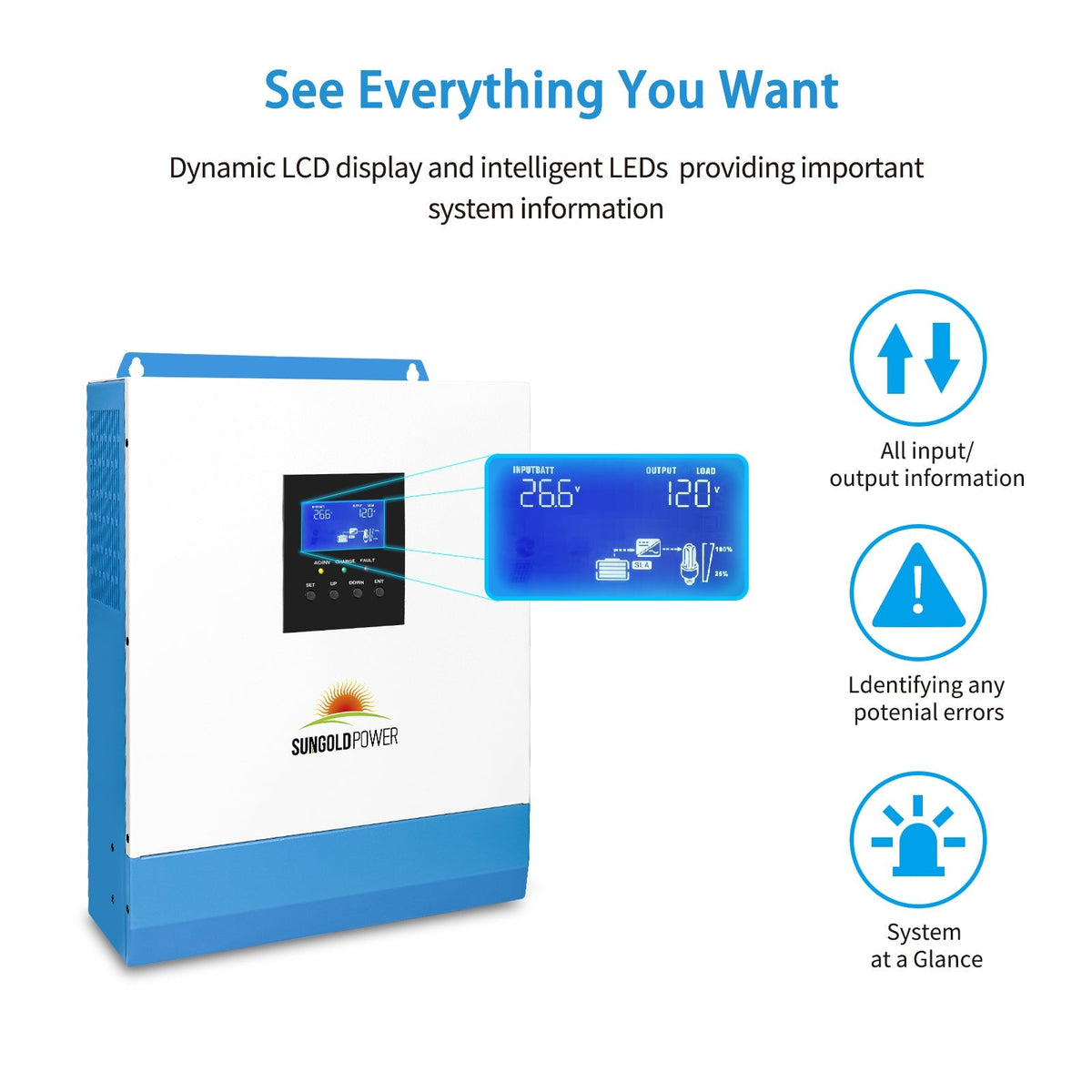

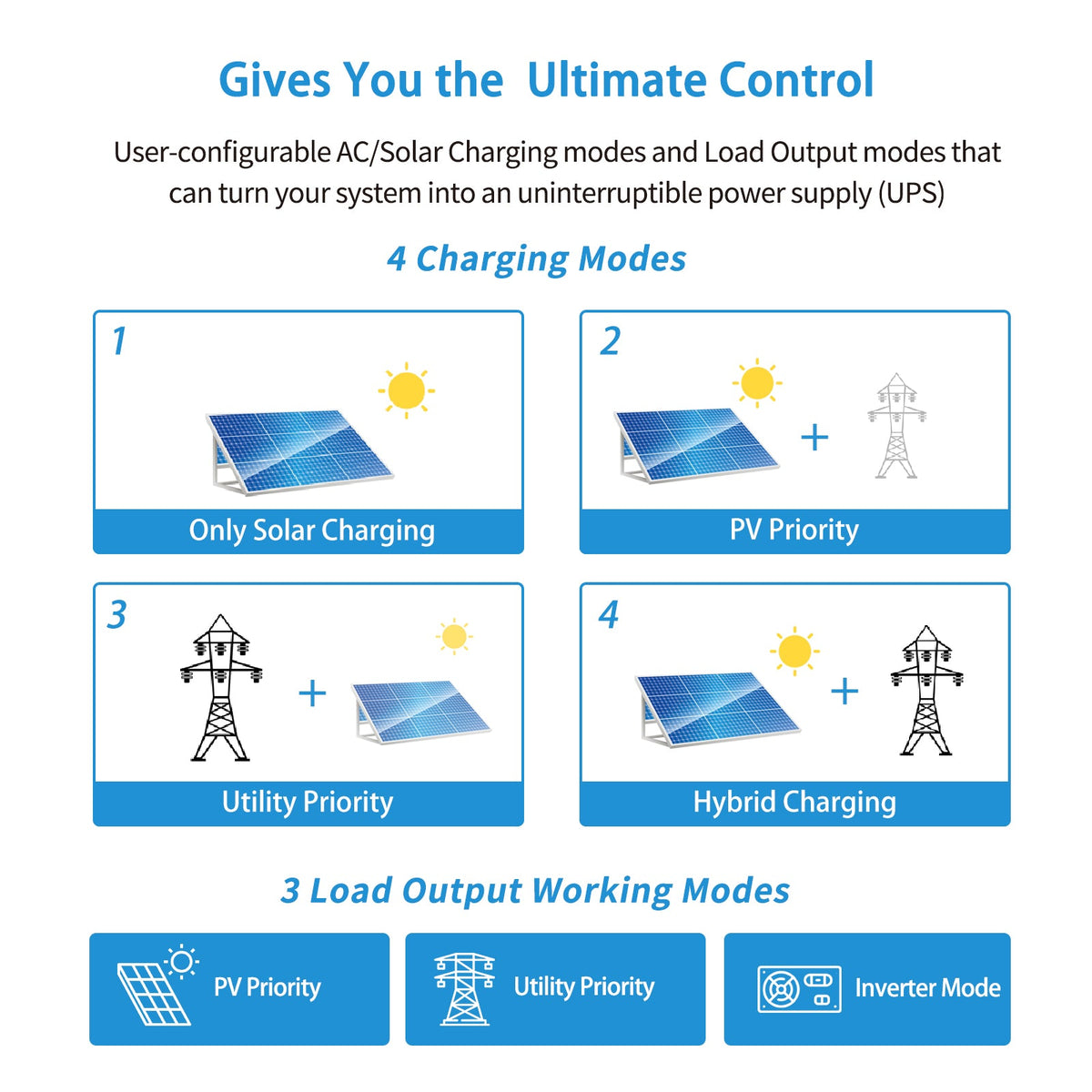

• ★ Four charging modes: AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging, Designed with LCD/LED dynamic display of system data and operating status.

• ★ Uninterruptible Power Supply: If the main/generator is disconnected or the solar charging is insufficient, the Inverter Charger takes over the battery supply to the alternative option within 10ms, which will not let your electronics shut down.

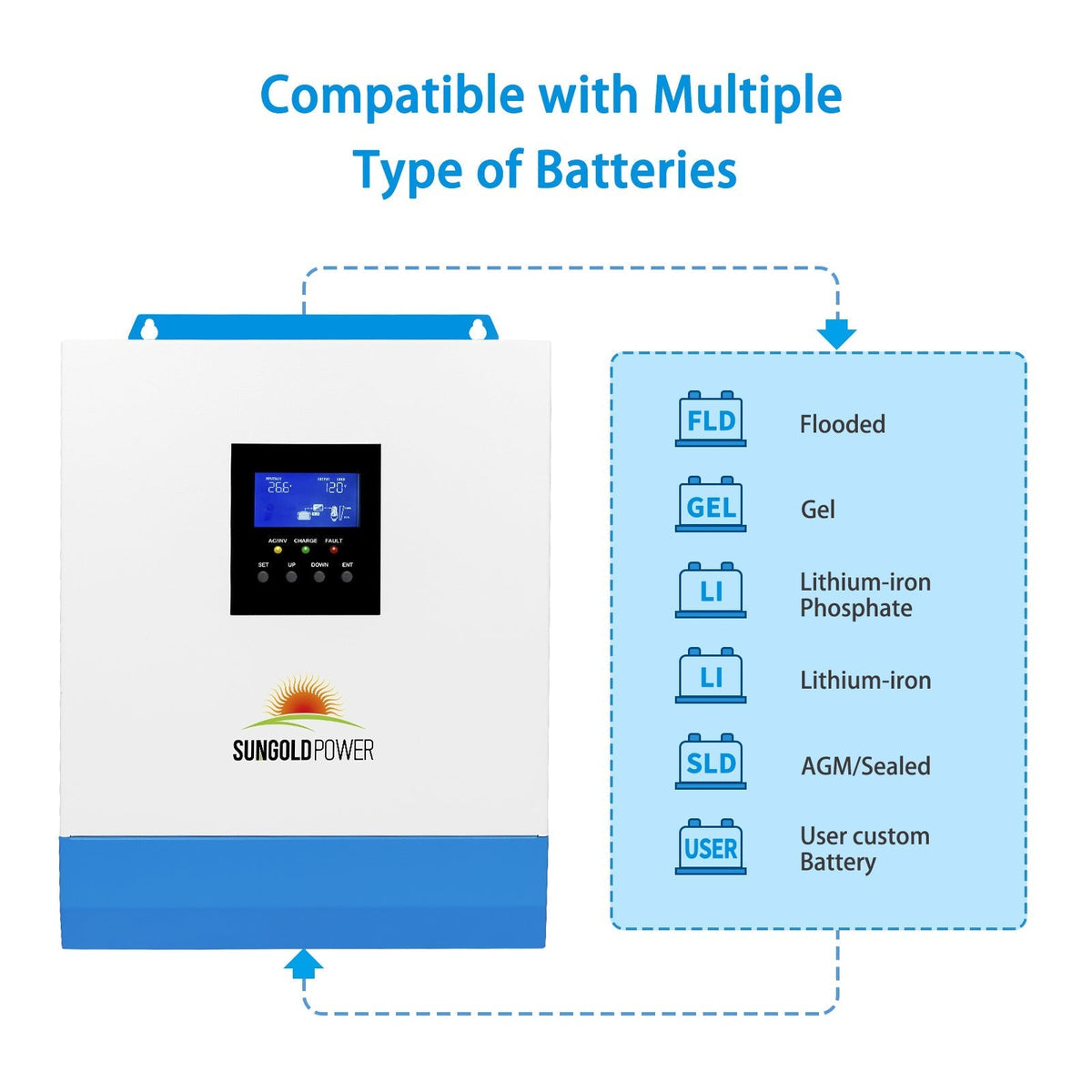

• ★ Battery type: 24V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom inputs to work with virtually all battery types.

• ★ Reliable protection: including short circuit protection, over-voltage and under voltage, protection, overload protection, reverse protection, etc.

 Features

• Built-in 60A MPPT solar charge controller, max PV input 1400W

• 40A Smart AC charger

• High-frequency transformer-less compact design

• Pure sine wave AC 120V output with 50hz/60hz switch

• Optional WiFi/ GPRS remote monitoring (extra cost)

• Overload, short circuit, over-discharge protection

• Auto-start the generator (Dry Contacts for delivering signal)

Specifications

Inverter Mode

• Output: Pure Sine Wave
• Surge Rating: 9000W (20 Seconds)
• Peak Power: 4500VA
• AC Output : 120VAC ,50HZ/60HZ
• Input Voltage / Rated Battery: 24VDC (minimum start-up voltage:22V
• Bypass Breaker Current: 40A
• Idle Power: 50W
• Power Saver Mode Idle Consumption: 25W

MPPT Solar Charging Mode:

• Maximum Input Power: 1400w
• PV Charging Current: 0-60A
• Max.PV Open Circuit Voltage: 100V
• PV operation voltage range: 30-100VDC
• Mppt Voltage Range: 30-85VDC
• Recommended wire: 8 AWG

AC Charging Mode:

• Rated AC input: 110V, 50HZ/60HZ
• Input Voltage Range: 90VAC-140VAC
• Conversion Time: 10ms
• Battery Type: Lead Acid and Lithium Battery
• Maximum Charging Current: 40A
• Charging Voltage Range:20-33VDC
• Short-Circuit Protection: Breakers and fuses
• Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)

Mechanical Specification:

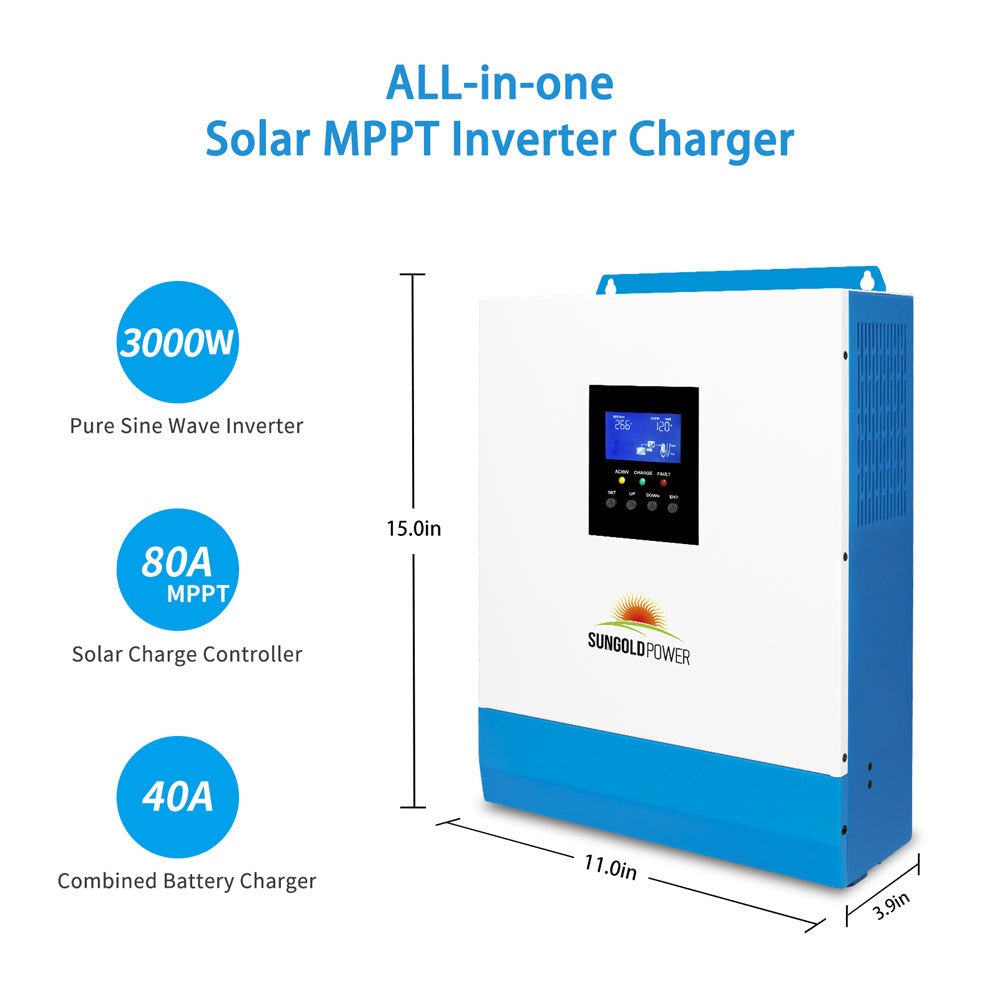

• Size: 378mm*280mm*103mm
• Net Weight: 6.8kg
• Noise: ≤60dB
• Operating Temperature Range:5°F ~ 131°F/ -15°C ~ 55°C
• Cooling Fan: Yes

What Our Experts Think

• Reliable Power Output: Delivers 3,000W continuous power, suitable for small to medium off-grid solar setups.
• 24V System: Optimized for efficient energy storage and compatibility with standard battery configurations.
• Solar Charging Efficiency: Features MPPT technology to maximize solar energy harvest and improve overall system performance.
• Integrated Charger: Combines inverter and battery charging functionality for seamless energy management.
• Pure Sine Wave Technology: Provides clean, stable power, safe for sensitive electronics and appliances.
• Built-In Safety Protections: Includes safeguards against overload, over-voltage, and short circuits for reliable operation.
• Compact and User-Friendly: Lightweight design with easy installation and intuitive controls.

Q&A

Q: What is the 3000W 24V Solar Inverter Charger (SPH302460A)?
A: A versatile 3000W solar inverter charger designed for 24V solar and battery systems, offering efficient power conversion and integrated charging.

Q: What are its key features?
A:

• 3000W continuous power output
• Compatible with 24V solar and battery setups
• Advanced MPPT for optimized solar energy harvesting
• Pure sine wave output for sensitive electronics
• Built-in protections: overload, overvoltage, and short circuit

Q: What applications is it ideal for?
A: Perfect for small residential solar systems, RVs, off-grid setups, and backup power for appliances.

Q: Can it handle solar charging?
A: Yes, the built-in MPPT controller ensures maximum energy conversion from solar panels.

Q: Is it suitable for off-grid use?
A: Absolutely, it is designed for off-grid and backup energy solutions with seamless integration into 24V systems

Maintenance Tips

• Cooling System: Keep vents and fans free from dust and debris to prevent overheating.
• Battery Care: Regularly inspect battery connections and monitor voltage for stable performance.
• Wiring Check: Ensure all connections are secure and free of corrosion or damage.
• Environment: Install in a clean, dry, and ventilated area to avoid moisture and dust buildup.
• Performance Monitoring: Use the display to track input/output voltage and troubleshoot irregularities.
• Firmware Updates: Update firmware to enhance system efficiency and compatibility.
• Safe Maintenance: Disconnect solar panels and batteries before servicing the unit
